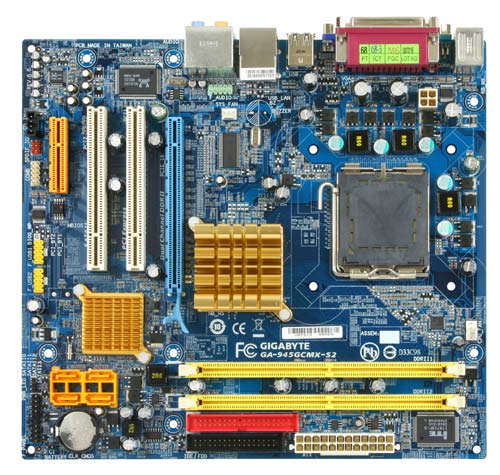

Gigabyte 945GCMX-S2
Processors that Support on Gigabyte 945GCMX-S2
Supports Intel® Core™ 2 Extreme dual-core / Core™ 2 Duo / Pentium® D / Pentium® 4 / Celeron® D processors
Supports 1066/800/533MHz FSB
* GA-945GCMX-S2 (rev. 6.6) is able to boot with Intel® Core™2 Duo supporting FSB 1333MHz (OC).
Chipset
Northbridge: Intel® 945GC Express Chipset
Southbridge: Intel® ICH7
Realtek 8110SC Gigabit Ethernet controller
Realtek ALC888 audio codec
Memory
2 DDR II DIMM memory slots (supports up to 4GB memory)
Supports 1.8V DDR II DIMM
Supports dual channel DDR II 667/533 DIMM
Internal I/O Connectors
1 24-pin ATX power connector
1 4-pin ATX 12V power connector
1 floppy connector
1 IDE connector
4 SATA 3Gb/s connectors
1 CPU fan connector
1 system fan connector
1 front panel connector
1 front audio connector
1 CD In connector
1 SPDIF In/Out connector
2 USB 2.0/1.1 connectors for additional 4 ports by cables
1 COMB connector
1 Chassis Intrusion connector
1 power LED connector
Expansion Slots
1 PCI Express x 16 slot
1 PCI Express x 4 slot
2 PCI slots
Back Panel Connectors
1 PS/2 keyboard port
1 PS/2 mouse port
1 parallel port
1 serial port
1 VGA port
4 USB 2.0/1.1 ports
1 RJ-45 port
6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
H/W Monitoring
System voltage detection
CPU temperature detection
CPU / System fan speed detection
CPU warning temperature
CPU / System fan failure warning
CPU smart fan control
BIOS
1 4 Mbit flash ROM
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Form Factor
Micro ATX
22.0 cm x 24.4 cm
Other Features
Supports @BIOS
Supports Download Center
Supports Q-Flash
Supports EasyTune Center
Supports Xpress Install
Supports Xpress Recovery2
Supports Virtual Dual BIOS (Xpress BIOS Rescue)
